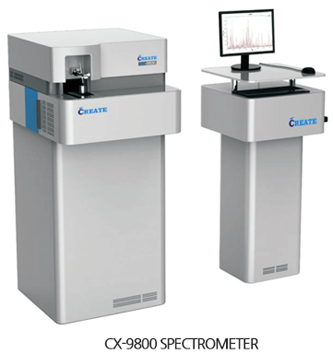

CX-9800 Spectrometer is Innovative Solution to Metal Analysis.
- Precise, reliable , fast , versatile and a ordable.
- Wavelength coverage : 130nm-800nm
- Permitting simultaneous analysis for up to 31 elements
- Automatic calibration of optical instruments.
- Available for routine analysis of small sample, diameter from 1mm to 8mm
- Analysis of quick speed ,20 seconds online all channel elements
-
Matrices
- Available for Fe, Al, Cu, Zn, Ti, Ni, Pb,etc.
-
Matrices
- Argon ushed with minimal consumption .
- Minimal maintenance requirements
- Customized small sample clamp .
-
Read-out System
- Ethernet data transmission based on DM9000
- High performance Read-out System processes
the spectrum data ve times faster than
traditional systems
-
Excitation Source
- Optimized ignition parameters
- Pre-spark with high discharge energy
- HEPS digital excitation source
- Maximum power : 700w,standby 40W
-
Software
- High accurate analysis results are easily achieved.
- Status monitor in sparking
- Microsoft Windows 7 operating system
- Strong database capability
- Customized format of report
-
Excitattion Source
- Multi-CCD detectors with high resolution
- Paschen-Runge structure with full
wavelength coverage - Saving valuable analytical time and
enhancing accuracy and detection limits. - Incorporate sample excitation and
automated sample monitoring techniques.
Specifications
| Optical System | Optical Structure | Paschen-Runge Mount |
|---|---|---|
| Rowland Circle of Diameter | 350mm | |
| Wavelength Range | 130nm-800nm | |
| Detector | Multi high resolution CCD detectors | |
| Degree Of Vacuum | Auto control within 6-15 Pa | |
| Pixel Resolution | 30pm | |
| Full Spectrum | ||
| Light room temperature is controlled automatically | ||
| Spark Source | Type | Digital arc and speak source/New plasma generator |
| Spark Frequency | 100-1000Hz | |
| Plasma Current | 1-80A | |
| Ignition Voltage | >8000V | |
| Spark Stand | Argon flushed with minimal consumption of Argon | |
| Spray discharge electrode technology | ||
| Adjustable sample clamp | ||
| Others | Measurable Elements | Fe base, Al base, Cu base, Zn base, ect |
| Dimension | 830mm(L)*700mm(W)*460mm(H) (Benchtop) 830mm(L)*700mm(W)*1230mm(H) (Floor Module) |
|
| Weight | 80kg (Benchtop) 120kg (Floor Module) |
|
| Storage Temperature | 0℃-45℃ | |
| Operating Temperature | 10℃-30℃, 23±2℃ is recommended | |
| Power | AC220V/50Hz | |
| Power Consumption | Excitation: 700W / Stand by:100W | |
| Argon Quality | 99.999%, Argon pressure > 4MPa | |
| Argon Consumption | 5L/min during spark mode | |
CX-9000
Aluminum Alloy AnalyzerSpecifications
| ptical System | Optical Structure | Flat Field Optical |
|---|---|---|
| Grating Focus | 350mm | |
| Wavelength Range | 200nm-500nm | |
| Detector | High resolution CCD Multi detectors | |
| Spectrum Width | 25.4mm | |
| Picxel Resolution | 30pm | |
| Full Spectrum | ||
| Light room temperature is controlled automatically | ||
| Spark Source | Type | Digital arc and spark source / New plasma generator |
| Spark Frequency | 100-1000Hz | |
| Plasma Current | 1-80A | |
| lgnition Voltage | >8000V | |
| Spark Stand | Argon flushed with minimal consumption of Argon | |
| Spray discharge electrode technology | ||
| Adjustable sample clamp | ||
| Others | Mesurable Elements | Al base |
| Dimension | 500mm(L)*450mm(W)*300mm(H) | |
| Weight | 20kg | |
| Storage Temperature | 0℃-45℃ | |
| Operating Temperature | 10℃-30℃, 23±2℃ is recommended | |
| Power | AC200V/50Hz(can be customized if necessary) | |
| Power Consumption | Excitation: 700W / Stand by: 100W | |
| Argon Quality | 99.999%, Argon pressure > 4MPa | |
| Argon Consumption | 5L/min during spark mode | |

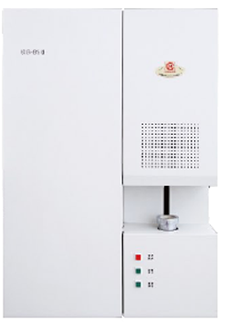

CS-910
Carbon and Sulfur AnalyzerSpecifications
| Measured Elements | Carbon(C) 0.0001%-15.0000% Sulfur (S) 0.0001%-5.0000% |
|---|---|
| Samples | Inorganic |
| Electronic Balance | Weighing Range: 0-100g(Resolution 0.0001g) |
| Furnace Alignment | Vertical |
| Sample Carrier | Ceramic Crucibles |
| Field of Application | Construction materials / Engineering / Electronics, Geology / Mining, Glass / Ceramics, Steel / Metallurgy |
| Furnace | High frequency furnace, 3.5kVA 20MHz |
| Detection Method | Solid state infrared absorption |
| Typical Analysis Time | 26 - 60 s, Average 35 s |
| Gas Required | Industry Oxygen 99.2 % |
| Power Requirements | AC220 V, ±5% 50Hz±2% |
| Dimensions | 600mm(L) x 540mm(W) x 780 mm(H) |
| Weight | 80kg |
| Required Equipment | Electronic balance, monitor, PC |
| Operating Temperature | 0-30 ℃ RH:<75% |
| Optional Accessories | Printer, PC |
